Name: Washing Basin Aluminum Rotational Molds Polishing
Brand: Wuxi Yisong Rotomolding Technology Co., Ltd.
Price: 2,550.00 USD
Availability: InStock

Home Products Aluminum Rotational Molds

Washing Basin Aluminum Rotational Molds Polishing

Product Details:

Place of Origin:	Chang Zhou, China
Brand Name:	Yisong
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden case packing
Delivery Time:	7-30 working days
Payment Terms:	T/T
Supply Ability:	10000 Set/Sets per Year

Contact Now

Detailed Product Description

Model NO.:	Variety Size Depend On Client′s Require	Notch:	Single Basin
Sink Style:	Single Bowl	Type For Basin:	Bowl Sinks
Style:	With Faucet	Number Of Holes:	One
Special Application:	Wash Hand	Color:	Aluminium Casting
Transport Package:	Plywood Box	Specification:	Depend On Customer Require
Trademark:	Yisong	Origin:	China
HS Code:	8477401000	Supply Ability:	1-999
After-sales Service:	Yes	Warranty:	Yes
Material:	Cast Iron	Surface Treatment:	Polished
Installation Type:	Above Counter	Shape:	Square
Customization:	Available \| Customized Request
Highlight:	Washing Basin Aluminum Rotational Molds , Aluminum Rotational Molds Polishing , Aluminium rotational mold makers

Washing Basin aluminium casting Mould customized polish

Rotational Moulding, also called Roto Casting or Roto Moulding is a unique process because the heating, shaping and cooling process take place inside a mould with no application of pressure. The process is carried out at the ambient pressure, which makes the products withstand environmental stress and crack resistant during use.

A predetermined quantity of blended polyethylene resin powder is poured inside a cold mould (usually of aluminum or steel sheet metal).

The mould is then rotated (Bi Axially) and gradually heated inside the oven. As the metal mould gets heated, the polymer resin powder melts and the molten resin eventually get distributed (Coated) along the inner surface of the mould. When all the powder has melted & distributed, the mould is transferred to a cooling chamber keeping the mould rotating.

The Bi-Axial rotation is continued until the cooling process is finished and the polyethylene has solidified. The mould is then opened and the finished product is removed. Given process chart helps understand the system.

Specification

Name	Washing Basin aluminium casting Mould customized polish
Shaping Mode	Rotomolding Mould/Rotational Moulding Mould
Surface Treatment	Polishing,Slot Blasting
Wall Thickness	8-10mm or Customised
Capacity	100-5000L or Customised
Mould Material	Aluminium
Uselife	10000 Cycles
Mold Process	Plasma Cutting + Handwork
Shape	Vertical / Horizantal
Feature	With Lid,Water Inlet,Outlet,Valve
Plastic Product Material	LLDPE, MDPE, HDPE, Cross Linked PE
Certifications	Iso 9001 ,Arma 2019 2020,2021,2022
Application	Drinking Industry
Color	Customized
Our Service	Help You Design With Our Professional Experience For Rotational Mold
Oem / Odm	Yes
Mould Life	1 Year
Mould Production Cycles	15-60 Days

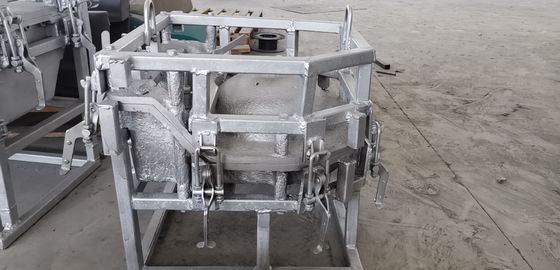

we produce aluminium cast mould for making wash basin
Wash Basin Mould

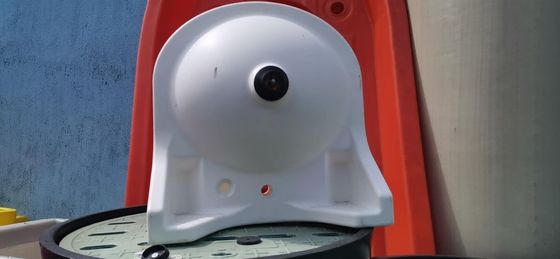

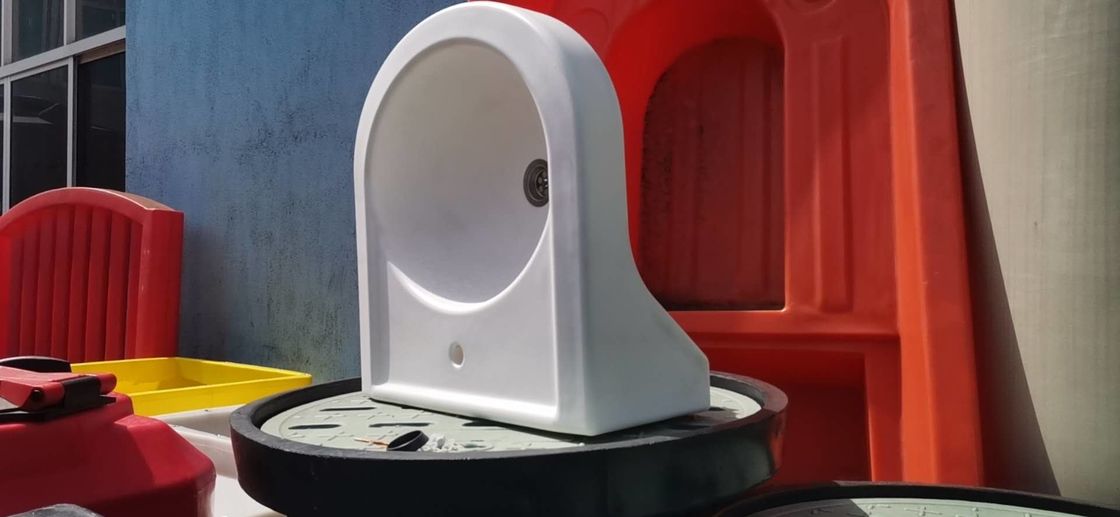

This kind of plastic wash basin, is strong and not easy damage, very good for outdoor using,
our mould can help you to produce it well,
Our strong design ability can suitable your any require.

Wash Basin Mould
