Shuttle Rotomolding Machine Oven Moveable 3000mm

Product Details:

Place of Origin:	Chang Zhou, China
Brand Name:	Yisong
Certification:	CE ISO
Model Number:	3000 Oven moveable rotomoulding machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden case packing
Delivery Time:	7-30 working days
Payment Terms:	T/T
Supply Ability:	10000 Set/Sets per Year

Contact Now

Detailed Product Description

Highlight:

shuttle rotomolding machine Oven Moveable

shuttle rotomolding machine 3000mm

shuttle rotomoulding machine

3000 Oven moveable multiple arm machine

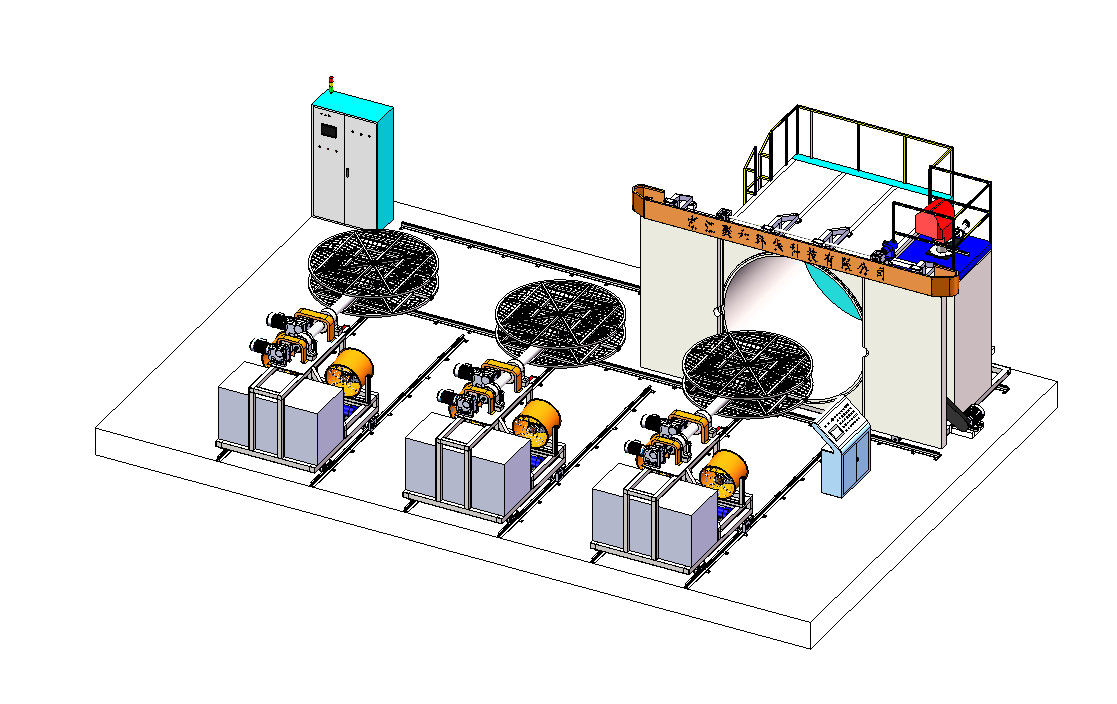

Shuttle rotational molding machine is placed along a straight line with oven and two mainframes in its center. Cooling chamber and loading station in both sides. When a beam on one side rotating a model into the oven to get heated, the other beam will stop aside to load or change beams.

In this way, the operation is flexiable for manufacturing comparatively large product. Even for comparatively small product, productivity is high. Besides, equipment is relatively simple and easy to be maintained. At present, this kind of rotational molding machine is broadly used in our country.

Specification

Oven size(mm)	L	W	H	Total power(KW)	Total weight(T)
ф2500	13 500	9000	4000	35	16
ф3000	15500	10500	4500	35	20
ф3500	17500	11500	5100	45	24
ф4000	19500	13 500	5600	45	26
ф4500	21 500	15500	6100	56	28

This machine is good for various products

different londing and demolding time,

independen operation time,

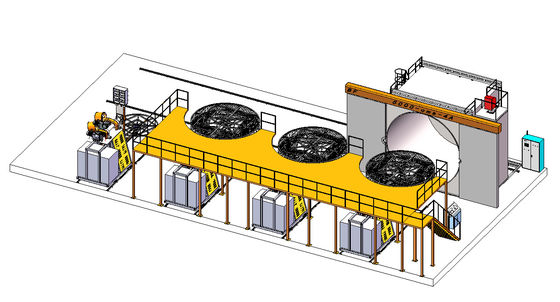

Shuttle Rotomolding Machine Oven Moveable 3000mm 0

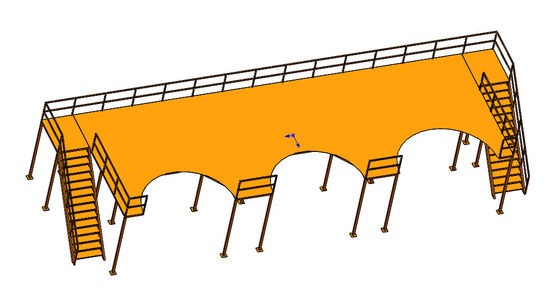

Shuttle Rotomolding Machine Oven Moveable 3000mm 1

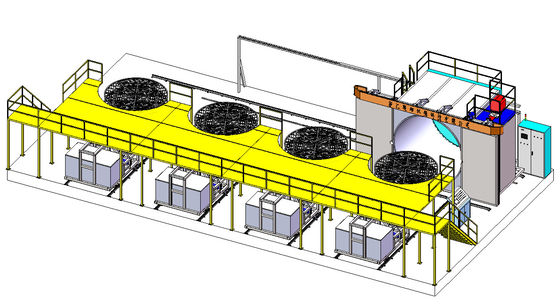

Shuttle Rotomolding Machine Oven Moveable 3000mm 2
