Name: 2500ml Mild Steel Molded Water Tank Rainwater Harvesting Tank
Brand: Wuxi Yisong Rotomolding Technology Co., Ltd.
Price: 2,550.00 USD
Availability: InStock

Home Products Water Tank Mould

2500ml Mild Steel Molded Water Tank Rainwater Harvesting Tank

Product Details:

Place of Origin:	Chang Zhou, China
Brand Name:	Yisong
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden case packing
Delivery Time:	7-30 working days
Payment Terms:	T/T
Supply Ability:	10000 Set/Sets per Year

Contact Now

Detailed Product Description

Model NO.:	Variety Size Depend On Client′s Require	Trademark:	Yisong
Origin:	China	HS Code:	8477401000
Supply Ability:	1-999	Wall Thickness:	2.5mm
Installation:	PE	Material:	Sheet Metal
Type:	Rainwater Harvesting	Transport Package:	Plywood Box
Specification:	Depend On Customer Require	Customization:	Available \| Customized Request
Highlight:	2500ml Molded Water Tank , Mild Steel Rainwater Harvesting Tank

2500ml Mild Steel Molded Water Tank Rainwater Harvesting Tank

Advantages

. One-piece construction.

. 4 Uniform wall thickness-nothinning in the extremites.

. 7 Resistance to stress-cracking and corrosion.

. The cost of plastic rotational mould is low.

. Rotational moulding products can be produced fully closed.

. It's available to deal with a variety of surface patterns and produce products in various colors.

Customised processing

Welcome to send us 2D/3D drawings and samples or We offer 3d design, and We can help you modifyyour original drawing to make it suitable for rotational molding.

Specification

Name	Water Tank Mould
Shaping Mode	Rotomolding Mould / Rotational Moulding Mould
Surface Treatment	Polishing,Slot Blasting
Wall Thickness	8-10mm
Capacity	100-5000 L Customised(250ml,500ml,750ml,1000ml,2500ml Available)
Material	Sheet Metal, Mild Steel
Uselife	10000 Cycles
Mold Process	Plasma Cutting + Handwork
Shape	Vertical / Horizantal
Feature	With Lid,Water Inlet,Outlet,Valve
Plastic Product Material	Lldpe, Mdpe, Hdpe, Cross Linked Pe
Certifications	Iso 9001 ,Arma 2019 2020,2021,2022
Application	Drinking Industry
Color	Customized
Our Service	Help You Design With Our Professional Experience For Rotational Mold
Oem / Odm	Yes
Mould Life	1 Year
Mould Production Cycles	15-60 Days

Wuxi Yisong is with full experience for making the rainwater harvesting tank mold
we did this item for many foreign customer already.

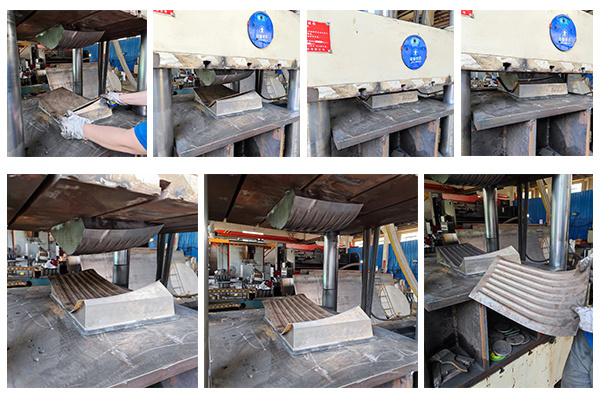

For making the mold better shape
we are using press machine insteat of human hand job.

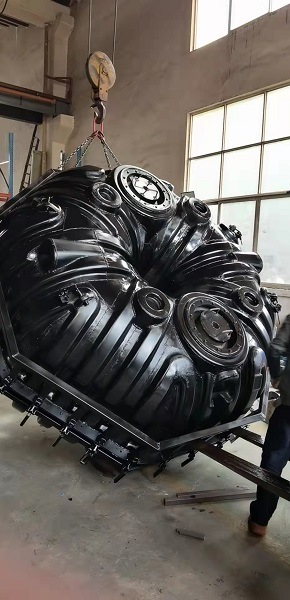

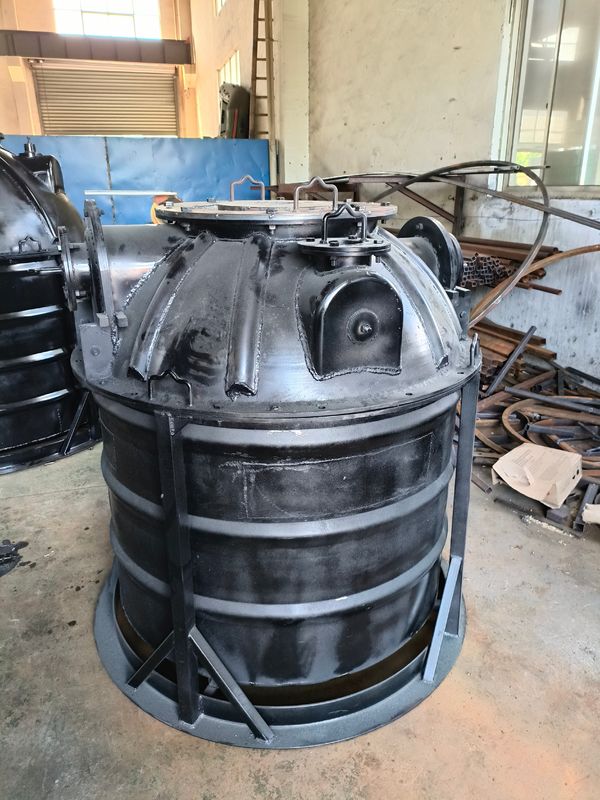

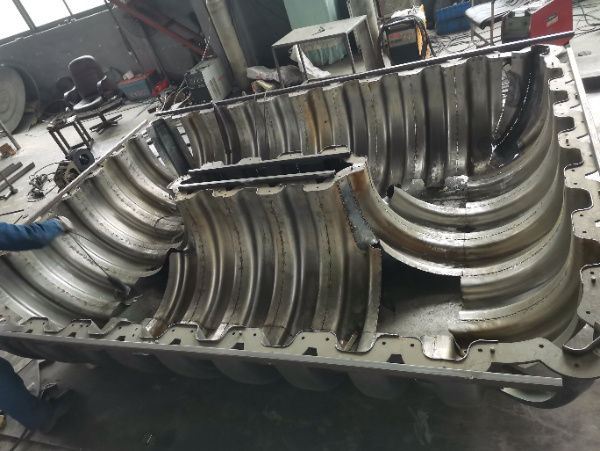

Mild Steel Mold for Rainwater Harvesting Tank
