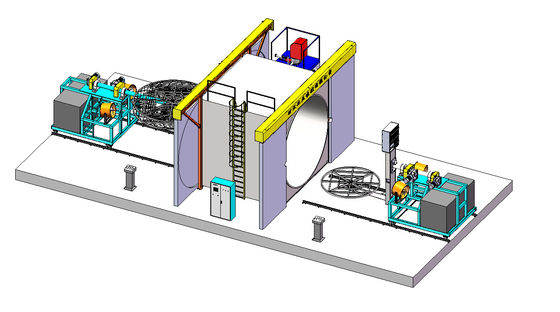

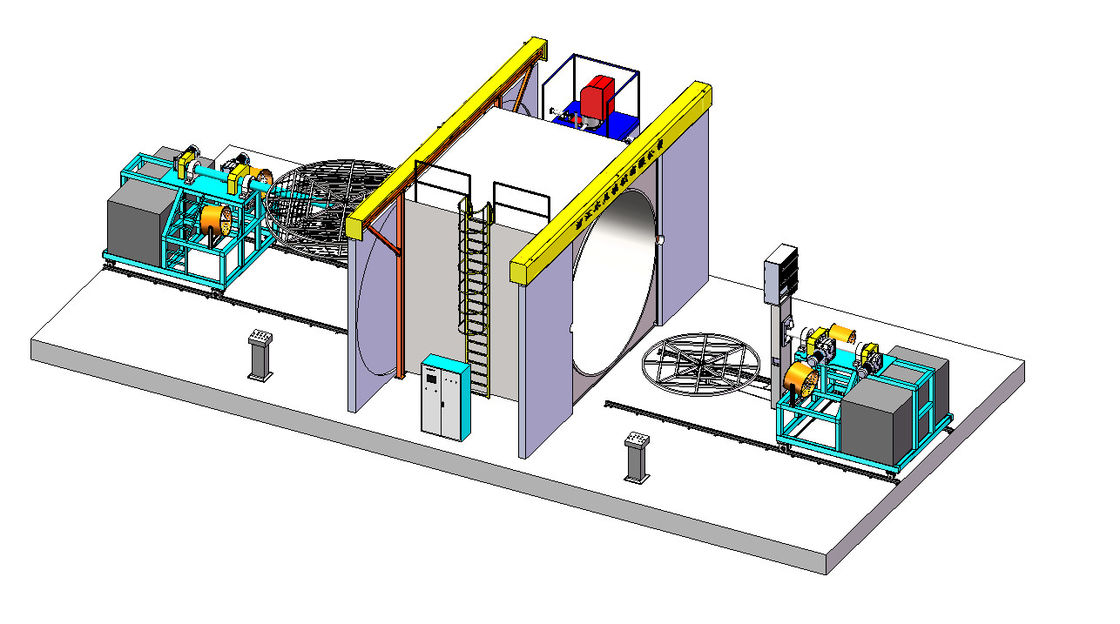

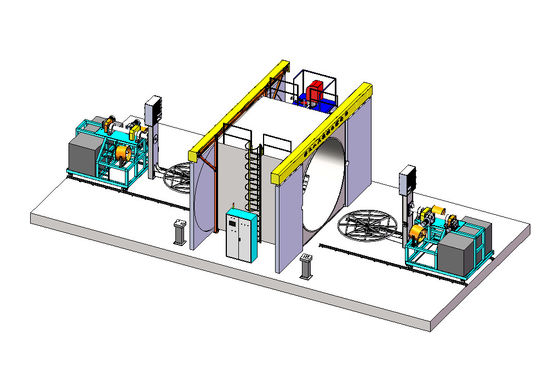

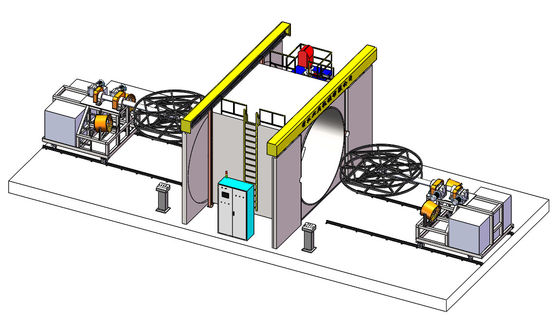

Oven Rotomoulding machine Shuttle type customized 2 arms
● Scope of application: suitable for the production of various rotomolded products, such as: water tanks, fuel tanks, lampshades, military tanks, urea tanks, pipeline wells, roadblocks, floating bodies, auto parts, kayaks, feeding systems, water tanks, septic tanks, etc Wait;
● Arm type: straight arm, L arm, C arm can be selected at will;
● Available heat sources: natural gas, liquefied gas or diesel;
● Efficient thermal insulation heating room, low energy consumption;
● Each arm operates independently and does not interfere with each other;
● Function interlock to ensure safe and stable operation of equipment;
● Real-time monitoring of heating room temperature to ensure product quality;
● Process recipe storage function, convenient for production management;
● The touch interface is fully functional and easy to operate;
● Fault self-check function, convenient for maintenance;
● Can realize remote fault diagnosis;
Specification
| Machine Dimension(m) |
Oven Inner Dimension(m) |
| Length |
Width |
Height |
| 13 |
5.6 |
4 |
2.6*2.6*2.6 |
| 14.7 |
6.1 |
4.5 |
3.1*3.1*3.1 |
| 16.3 |
6.8 |
5 |
3.6*3.6*3.6 |
| 18 |
7.5 |
5.5 |
4.1*4.1*4.1 |
| 20 |
8 |
6 |
4.6*4.6*4.6 |
| 22 |
8.7 |
6.5 |
5.1*5.1*5.1 |
Wuxi Yisong is famous for offering you total solution for rotational moulding industrail,
we cooporation with good quality and good service equipment supplier,
so we are sure you can get stable and reliable machine
Shuttle machine is good for small prouction and different items,
becuase all the cycle could be independ,
mahcine content one oven
2 arms
